Gutter drainage

Channel elements with slot diffuser made of galvanized steel, powder coated anthracite, class A 15

Channel elements with slot diffuser made of galvanized steel, powder coated anthracite, class A 15

Channel elements with slot diffuser made of galvanized steel, powder coated anthracite, class A 15

Channel elements with slot diffuser made of galvanized steel, powder coated anthracite, class A 15

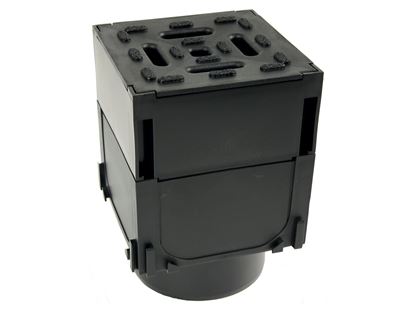

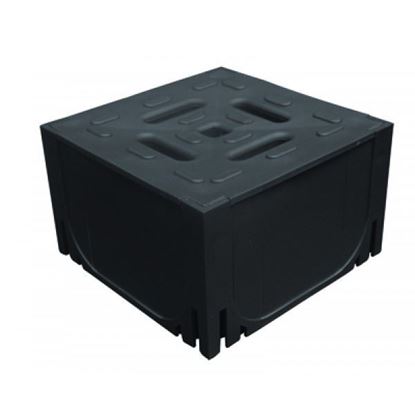

The Aco Hexa Slotline inspection/corner piece should be placed at the beginning and at the end of a line of Hexa Slotline. This allows the gutter to be flushed and any blockage of the drain to be remedied.

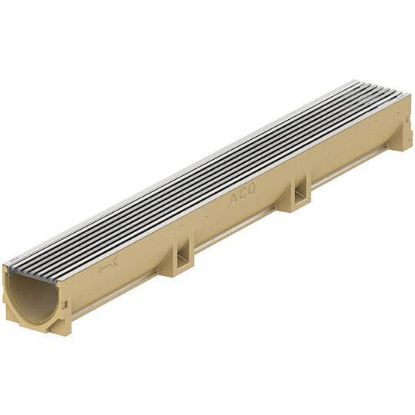

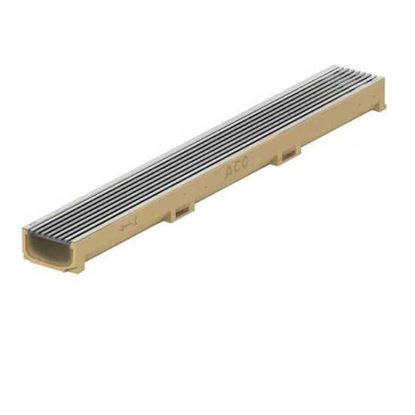

Channel elements with longitudinal bar grating made of stainless steel, class A 15

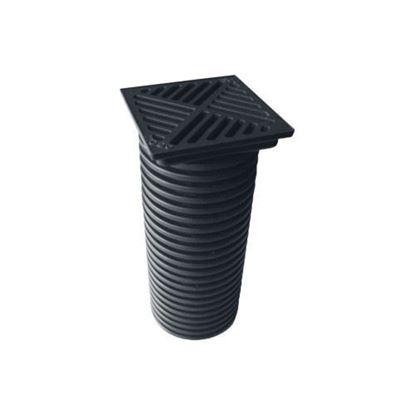

The Aco infiltration well is the ideal solution to construct a well under an outdoor tap without building a complete sewer. With a capacity of 11 liters, excess water can be absorbed into the well and later into the surrounding soil.

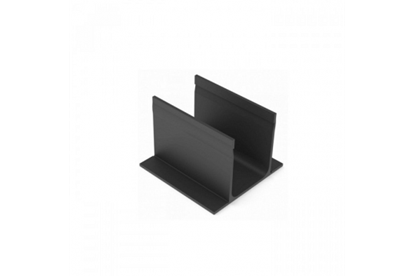

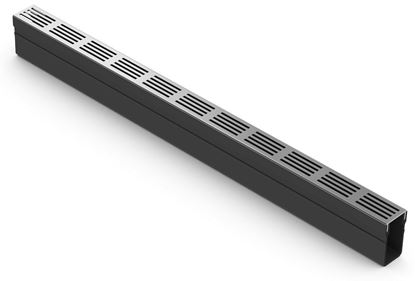

The ACO Slimline is an ultra narrow plastic gutter with an aluminum design grating. The range includes gutters and accessories, including end plates and fittings with vertical spouts. Corners are easily made with corner elements. Suitable for connection to rainwater sewers

Channel elements with longitudinal bar grating made of stainless steel, class A 15

ACO Easygarden Hexaline 2.0
- zwart kunsstof
-voor Hexaline 2.0 en Euroline

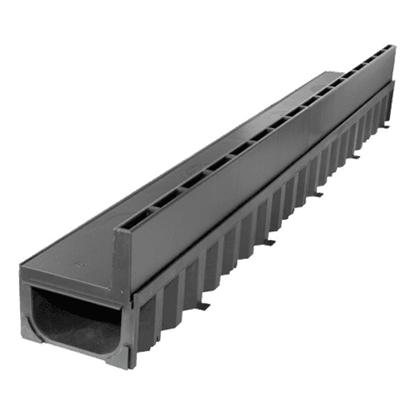

The Aco Hexaline Slotline gutter is used along terraces with large format paving and subtly drains excess rainwater.

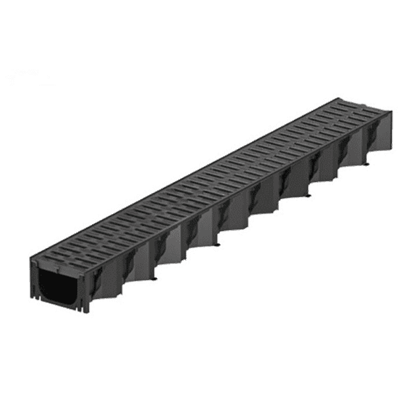

The Aco Hexaline gutter is used along terraces and in front of garage entrances to collect and drain excess rainwater.

Quickly captures clean water and rainwater Kan geplaatst worden midden in het terras, voor de garagepoort, als afboording tussen bloemperk en terras. Made of UV-resistant, black polypropylene Liquid-tight connection to drain pipe Lengte: 100cm Breedte: 12,5cm Hoogte: 8cm

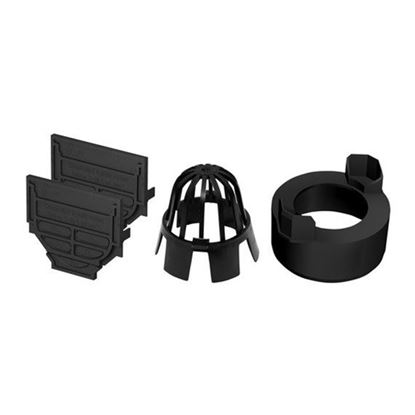

Aco Hexa set: 2.0 end plates, bottom outlet 110 mm and leaf trap De Aco Hexaline eindplatenset bestaat uit 2 eindplaten, een uitloop en een bladvanger. Deze worden toegepast in combinatie met Hexaline roostergoot.

Hydraulic design with optimum capacity and fluid density. Stability and load class A15. V-section ensures self-cleaning. Gutter element made of polyester concrete with slotted grid made of galvanized steel, powder coated anthracite. Outlet opening of 110 mm. Dimensions: 100 cm x 11.8 cm x 9.7 cm,

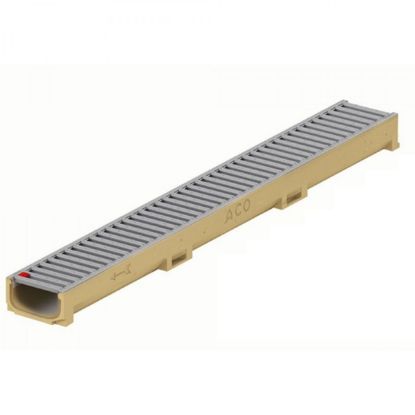

Drainage channel with V-section and perfectly free passage thanks to the screwless anchored, aesthetic trench grating made of galvanized steel, class A 15 kN. Grid for the drainage of a terrace, a driveway or a garden path.

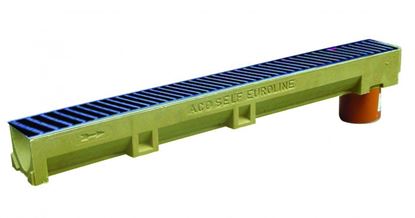

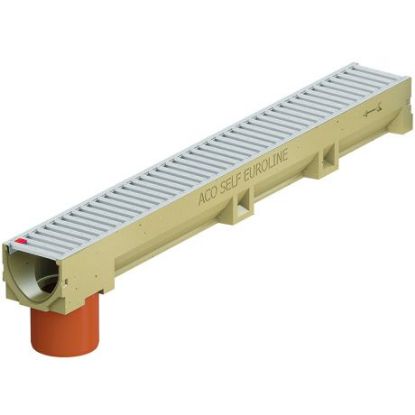

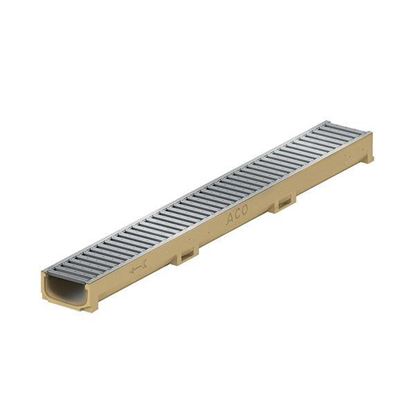

Drainage channel with V-section and perfectly free passage thanks to the screwless anchored, aesthetic trench grid made of galvanized steel, class A 15 kN. Contains a cast-in PVC outlet pipe with 110 mm diameter.

Floor element with a height of only 5.7cm, easy for renovation work Floor element: polyester concrete Grid design: anthracite galvanized slotted grid

Floor element with a height of only 5.7cm, easy for renovation work Floor element: polyester concrete Grid design: cast iron slotted grid

Drainage channel with V-section: optimal flow and self-cleaning bottom Polyester 100% liquid-tight gutter line Outlet Ø 110mm

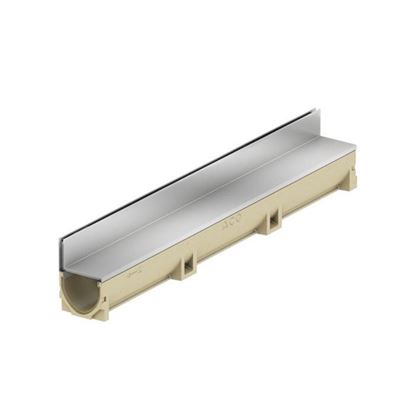

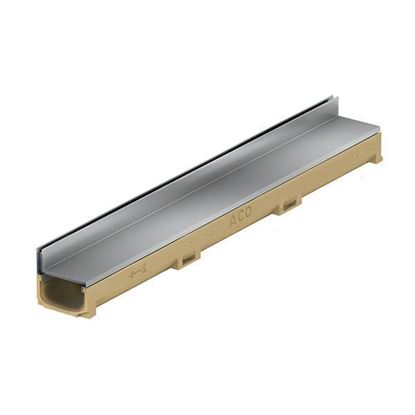

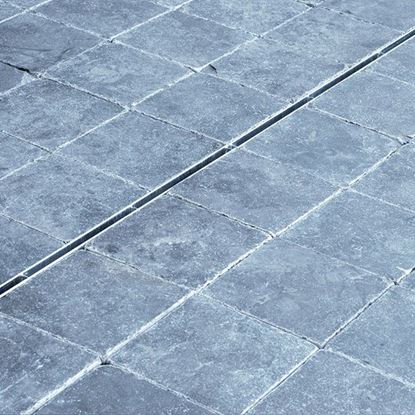

Drain channel with perfect free passage and eccentric attachment E, class A15 kN. Dimensions: length 100 cm, width 11.8 cm, height 10.5 cm, free trench height 4.0 cm. Trough element made of polyester concrete, attachment made of stainless steel. Ideal for efficient water drainage in various applicat

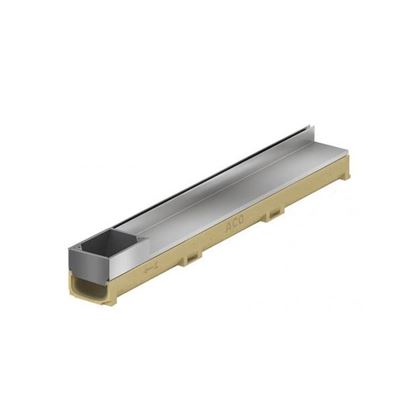

Chute + extension E stainless steel with hatch Drainage channel with optimum passage and eccentric attachment E, class A 15 kN. Equipped with a ø 110 mm connection and a 15 cm hatch. Dimensions: 100 cm long, 11.8 cm wide, 10.8 cm high, free trench height 4 cm. Material: polyester concrete and stai

Channel + stainless steel attachment Drainage channel with perfect free passage, with eccentric attachment E, class A 15 kN.

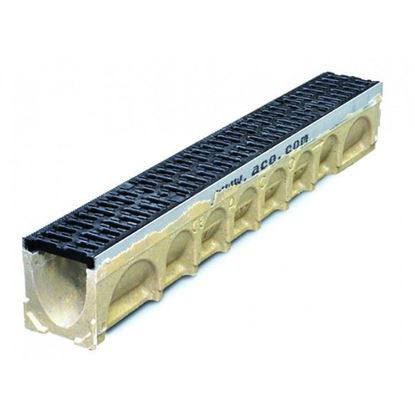

For heavy-duty work Provided it is properly installed according to ACO regulations, it meets load class D 400kN Drainage channel with V-section and perfect free passage

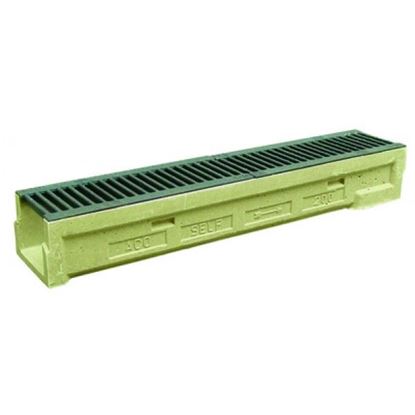

The wider channel, ideal for draining large, sharply sloping areas Drainage channel with fixed grid via clips Galvanized steel mesh screen Length: 100cm Construction width: 20cm Inner width: 15cm Height: 14,9cm Weight: 21,4kg

This drainage channel with mesh grating made of galvanized steel is suitable for large, sharply sloping surfaces. Dimensions: 100 cm long, 20 cm construction width, 15 cm inner width, 14.9 cm high. Weight: 21.4 kg, load class B125 kN.

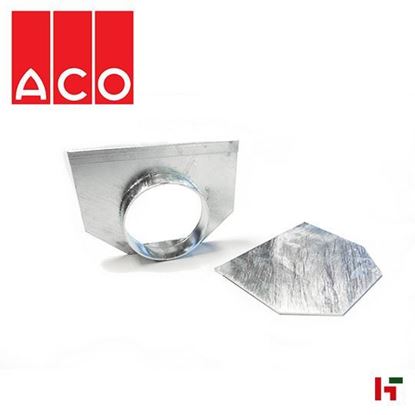

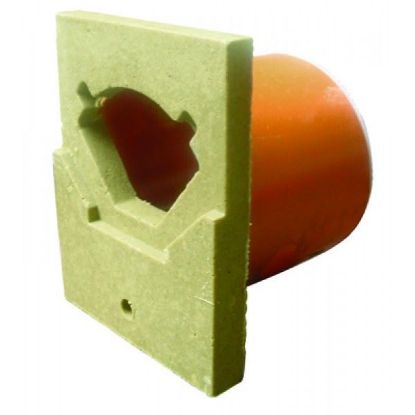

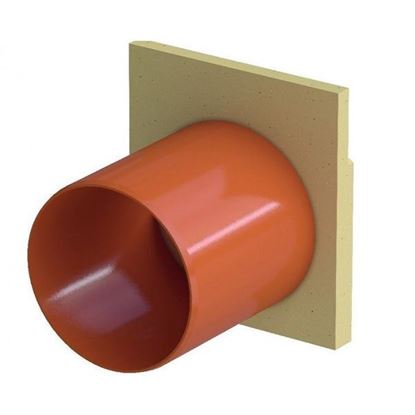

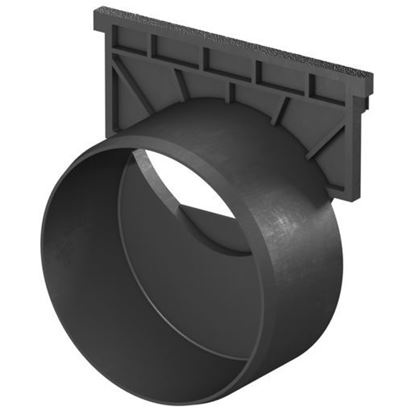

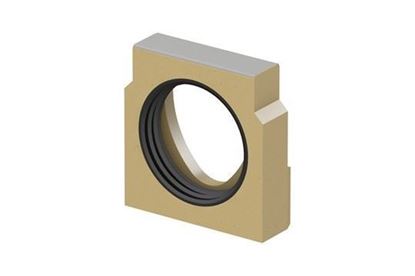

The Aco Euroline end plate with horizontal outlet 110 is used to close off a Euroline line drainage and drain the water horizontally.

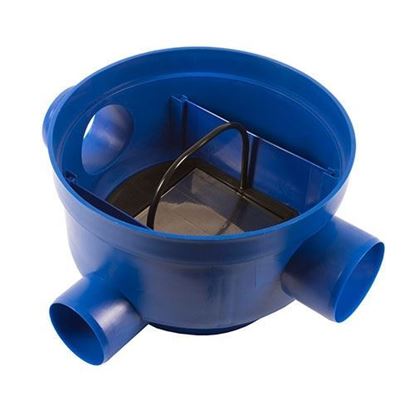

The Devabox is mounted on a stable surface level in front of the cistern. Rainwater enters along the inlet and falls through the mesh into the sand filter. From there, the clean water runs to the cistern. The dirt remaining in the filter washes away during a heavy rain.

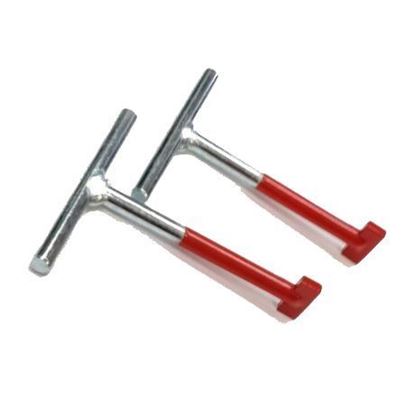

Aco grate hooks a set of 2 pieces

Shortening

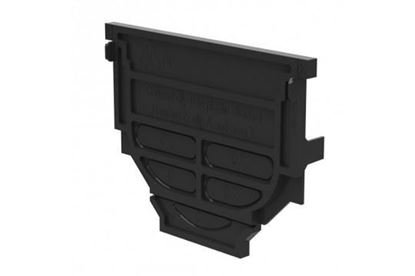

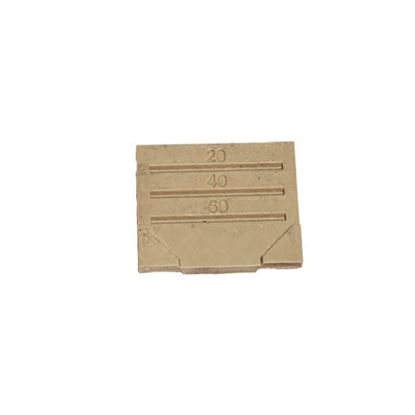

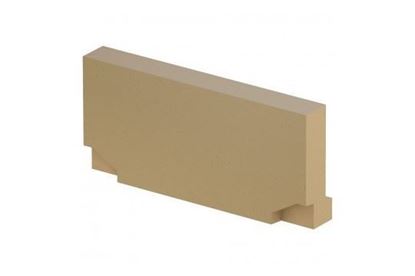

Closed end plate for placement at beginning / at the end of Euroline 100 channel line. Suitable for the standard gutter element Euroline 100.

Hydraulic: V-section for optimum flow. Capacity: High discharge. Liquid-proof: Durable. Stability: Rugged design. Load class: A15 kN. Design: Galvanized, powder-coated grating. Dimensions: 100 cm long, 11.8 cm wide, 9.7 cm high. Weight: 8.3 kg.

- Drainage system walkable. - Width of gutter element made of black plastic 54mm external, glueable - Width aluminum design grid 61mm external - Overall height 103mm - Length 1000 mm - weight1,63 kg.

ACO Slot grating cast iron (500 mm) for line drainage gutters (Hexaline 2.0 and Euroline). Anthracite, with a width of 120 mm and an opening of 95 mm x 12 mm. Load class B-125 (EN-1433), max. load capacity 125 kN.

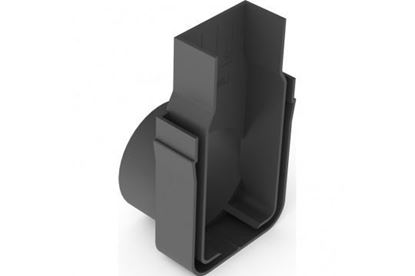

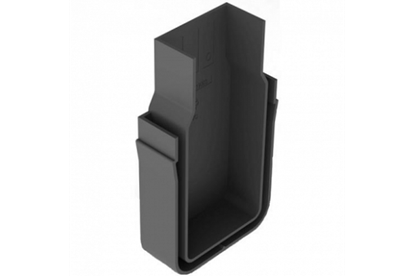

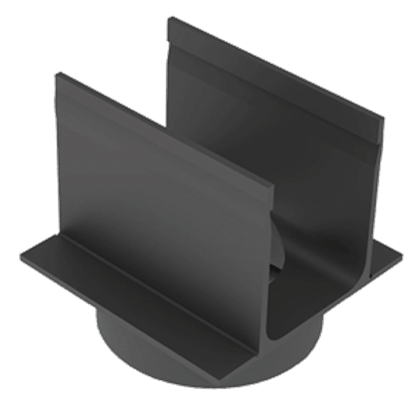

ACO EasyGarden Slimline is an ultra narrow plastic gutter with an aluminum design grate. Includes end plates and fittings for vertical outlet. Simple corner connections are possible. Suitable for connection to rainwater sewers and infiltration systems.

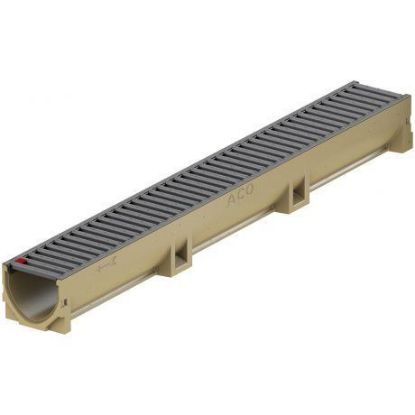

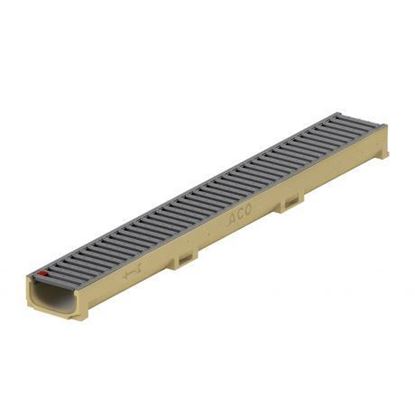

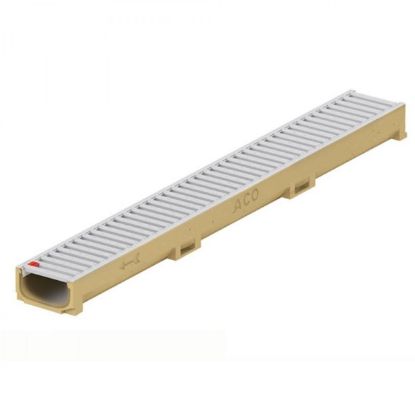

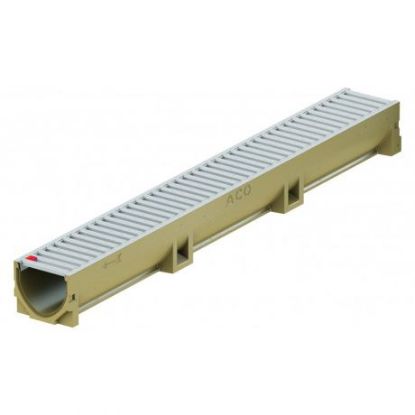

Polymer concrete drainage channel with galvanized steel grating. Suitable for terraces, driveways and garden paths. Easy installation, low maintenance and loadable up to A 15 kN. Length: 100 cm, width: 11.8 cm, height: 10.1 cm.

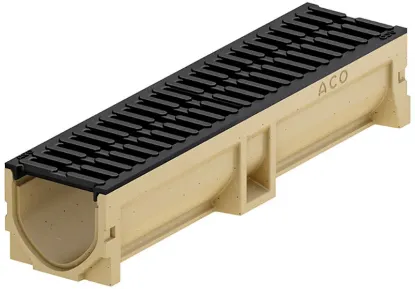

Polymer concrete drainage channel with a durable cast iron grate. Suitable for driveways, terraces, and garden paths. High load capacity, low maintenance, and easy installation.

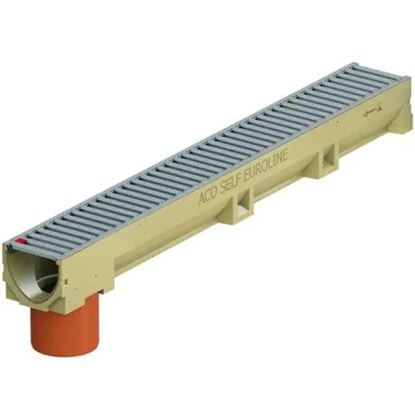

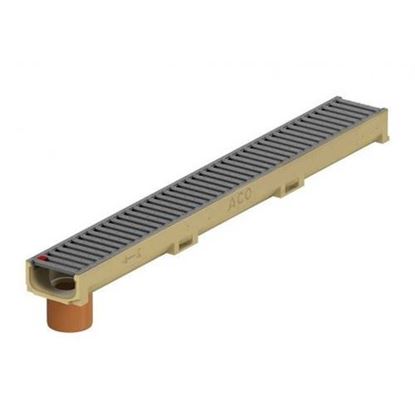

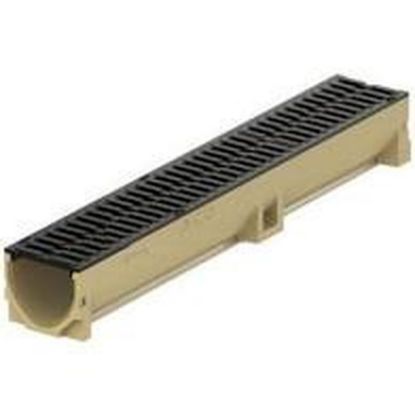

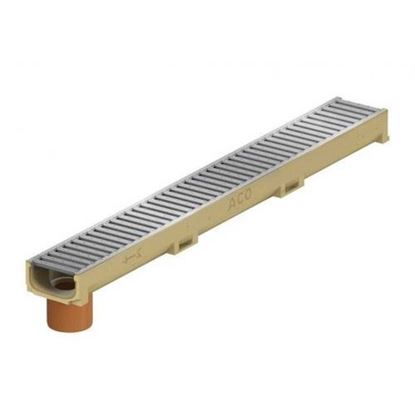

Polymer concrete drainage channel with a durable cast iron grate and bottom outlet. Ideal for driveways, terraces, and garden paths. Supports high loads, low maintenance, and easy installation.
